Prism Sheet - Customized Backlight Solutions Provider &Fábrica

película prisma/Hojas ópticas/

Hoja de prisma

The Prism Sheet is used when changing the incident direction or diffusing a light source that is directional such as an optical device for the LCD TV or the laptop /monitor backlight.

  • Detalles del producto
  • Packaging & Shipping

What is Prism sheet?

Hoja de prisma para la reparación de la luz de fondo de la pantalla LCD

The Prism Sheet is used when changing the incident direction or diffusing a light source that is directional such as an optical device for the LCD TV or the laptop /monitor backlight.

Optical principle

Prism sheet is a special reflector used to enhance the intensity and color saturation of transmitted light and is commonly used in equipment such as tv, laptop ,monitor and led related backlight displays. based on the phenomenon of interference and diffraction of light. When the light is irradiated on the prism sheet, since the prism sheet is a non-uniform medium, the propagation direction of the light will change. Specifically, light rays are reflected and refracted on the prism film, and interference and diffraction phenomena will occur at different positions. These interferences and diffractions cause the light to generate multiple wavelengths on the prism film , including visible light and other wavelengths of light.

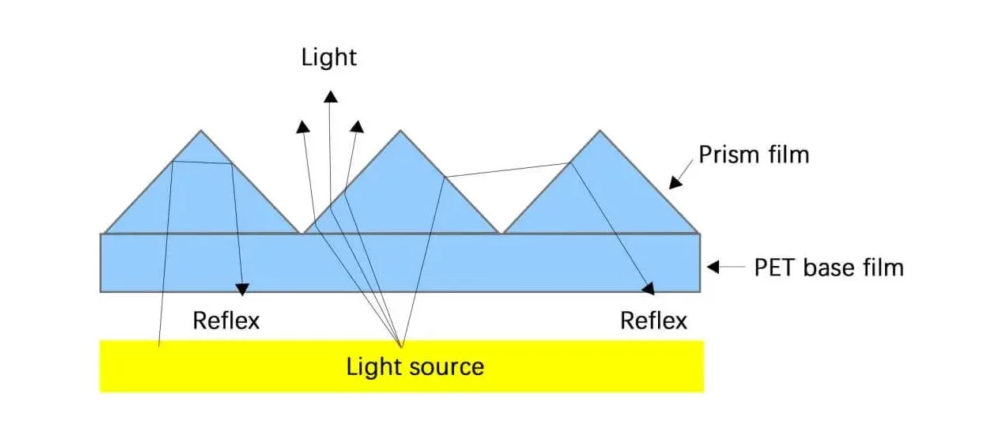

Optical Principle of prism sheet

Product Parameter

Product NamePET Brightness Enhancement Film (Prism sheet)
MaterialPET
Heat Resistance90°C
Espesor100um, 150um,220um
Service Life6~10 years
Anti-oxidationNo discoloration over long-term use
Custom Die CuttingCustom shapes can be cut according to customer’s dimensions and drawings
ApplicationsBacklight sources for tv /laptop/monitor; advertising light boxes, led panel lights, instruments, control panels, etc.

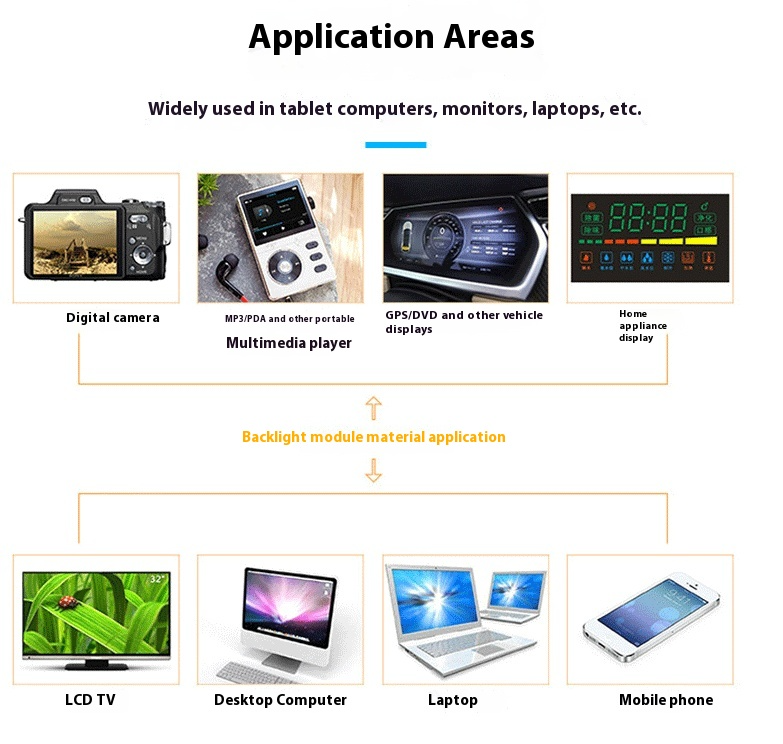

Prism sheet Application

Prism sheet can be used for LCD backlight, the optical film backlight components.

prism sheet application for LCD

Sobre nosotros

Shenzhen Ruinuoda Technology Co., Ltd es un proveedor dedicado de productos ópticos personalizados y soluciones de retroiluminación LED, con sede en Shenzhen, China.

Con 8 años de experiencia en la industria, nos especializamos en componentes ópticos a medida, que incluyen placas de guía de luz, películas de polarizador y otros materiales relacionados para sistemas de exhibición como televisores, computadoras portátiles, monitores, equipos industriales y una amplia gama de aplicaciones de iluminación.

La calidad, la confiabilidad y la capacidad de respuesta son el núcleo de todo lo que hacemos. Respaldado por un experto R&D Equipo Con experiencia en diseño óptico de puntos, ofrecemos dibujos personalizados basados en necesidades de aplicación específicas. La producción cuenta con el apoyo de trabajadores experimentados y un equipo de control de calidad capacitado profesionalmente para garantizar un rendimiento constante y altos estándares desde el concepto hasta la entrega.

Nuestras asociaciones a largo plazo abarcan Europa, América, Asia y el Medio Oriente. A través de una estrecha colaboración con los clientes, ofrecemos soluciones ópticas confiables que mejoran el rendimiento de la pantalla y contribuyen a un futuro más inteligente, más brillante y más sostenible.

Leading Time:
1.Sample order can be delivered in within 5-7 working days.

2.General order can be delivered in 10-15 working days.

Embalaje & Entrega
