What is Reflective sheet?

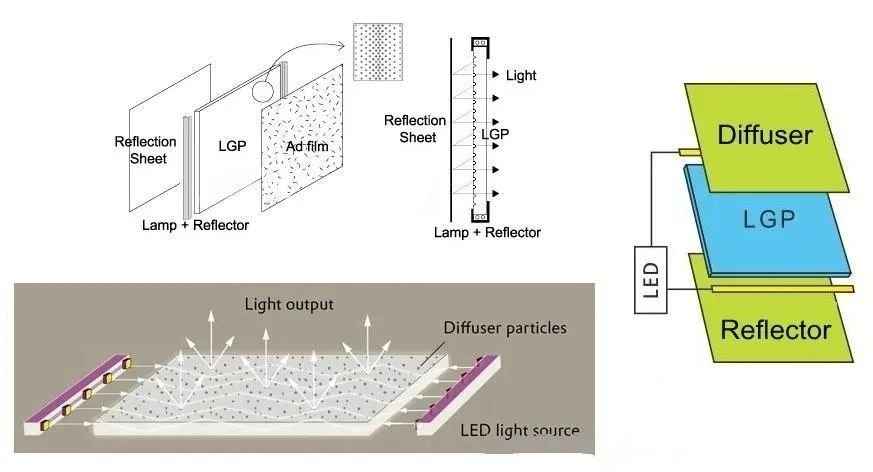

The PET reflective sheet, located at the bottom of the light guide plate (LGP), has a high light reflection efficiency. It is designed to reflect light that leaks out from the bottom of the LGP back into the LGP for reuse, thereby increasing light utilization efficiency and enhancing brightness.

Product Parameter

Öğe	Tanım
Ürün adı	PET reflective sheet for led lighting
Malzeme	Optik dereceli PET + yansıtıcı kaplama
Yansıtma	% 92 -% 94
Kalınlık	0.15 mm / 0.188 mm / 0.225 mm (özelleştirilebilir)
Renk	Beyaz
Dış görünüş	Mat veya parlak
Genişlik	1000 mm'ye kadar (özel boyutlar mevcut)
Başvuru	LCD arka ışık modülleri, dizüstü bilgisayarlar, LED paneller, ekranlar
Moq	100 PCS
Kurşun zamanı	Örnekler için 5-7 iş günü, toplu siparişler için 10-15 gün

Optical Reflective sheet Characteristics

1.Optical grade New material

Made from high-quality raw materials, this product is heat resistant, does not leave residue, and has strong tensile strength.

2.Highly resilient and stretchable

Highly resilient and stretchable, making it difficult to puncture during the packaging process and ensuring reliable quality.

3.Scratch-resistant

The film surface is flat, smooth, and uniform in thickness, providing high definition and resistance to scratches.

Reflective sheet application

The function of PET reflective sheet is to increase the reflectivity of optical surfaces.

It can be widely used for:

1. LCD backlight modules

2. Light source backlight surfaces (LED, CCFL)

3. Flat panel light-emitting modules

4. Ultra-thin light boxes, crystal light boxes

5. Downlights of various sizes

6. Reflective wallpaper

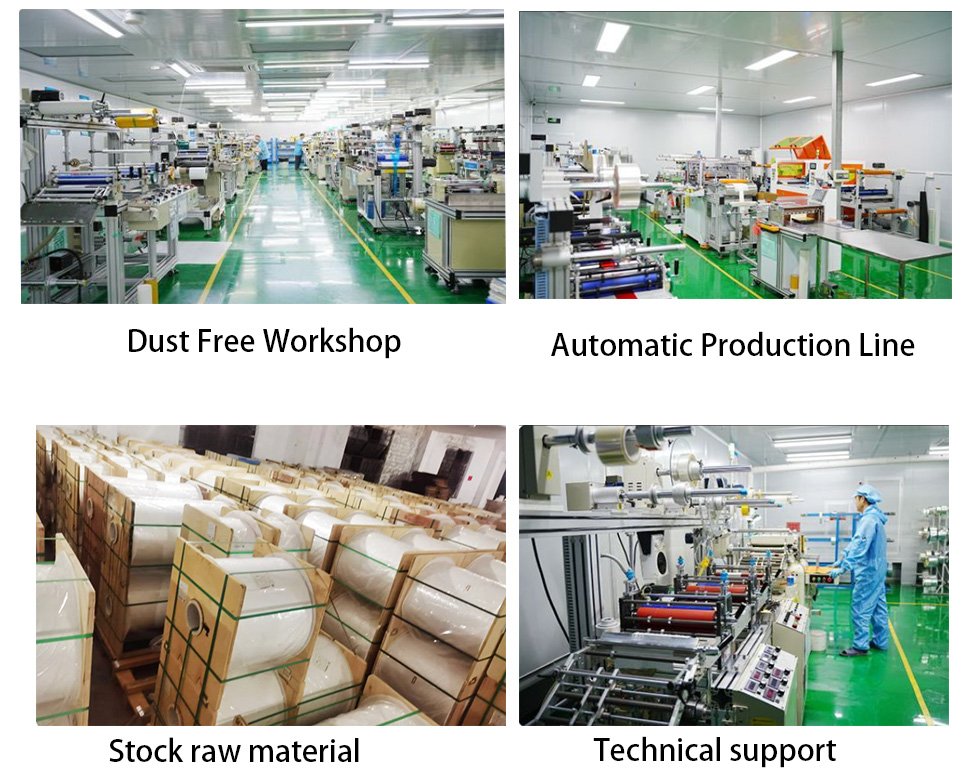

Factory workshop

Önde zaman: 1.Sample order can be delivered in within 5-7 working days. 2.General order can be delivered in 10-15 working days. Packing & Delivery

1.Are you the manufacturer of reflective sheet ?

YES,we are .

2. What materials are your reflective films made of?
Our reflective films are typically made of PET or composite materials with high reflectivity coatings such as white titanium dioxide. These materials offer excellent durability, thermal resistance, and light reflection.

3. What is the typical reflectivity rate of your products?
Our reflector sheets offer high reflectance, usually above 94%, depending on the specific material and thickness.

4. Can I get customized sizes or shapes?
Yes, we offer die-cutting and custom sizing services based on your drawings or requirements. OEM and ODM orders are supported

5. What is the thickness range of your reflector sheets?
Our reflective films are available in various thicknesses, typically 0.15mm,0.188mm,0.225mm,0.3mm .

6. Can your reflector sheets be laminated or combined with other optical films?
Yes, our reflector sheets can be used in multi-layer optical assemblies, including diffusion sheets and brightness enhancement films (BEF), especially in LCD backlight units (BLU).

7. Do you offer samples for testing?
Yes, we provide free or low-cost samples for quality evaluation. Please contact us to know more details.

8. What is your MOQ for reflector sheets?
We support low MOQ for standard sizes. MOQ is 100pcs.
