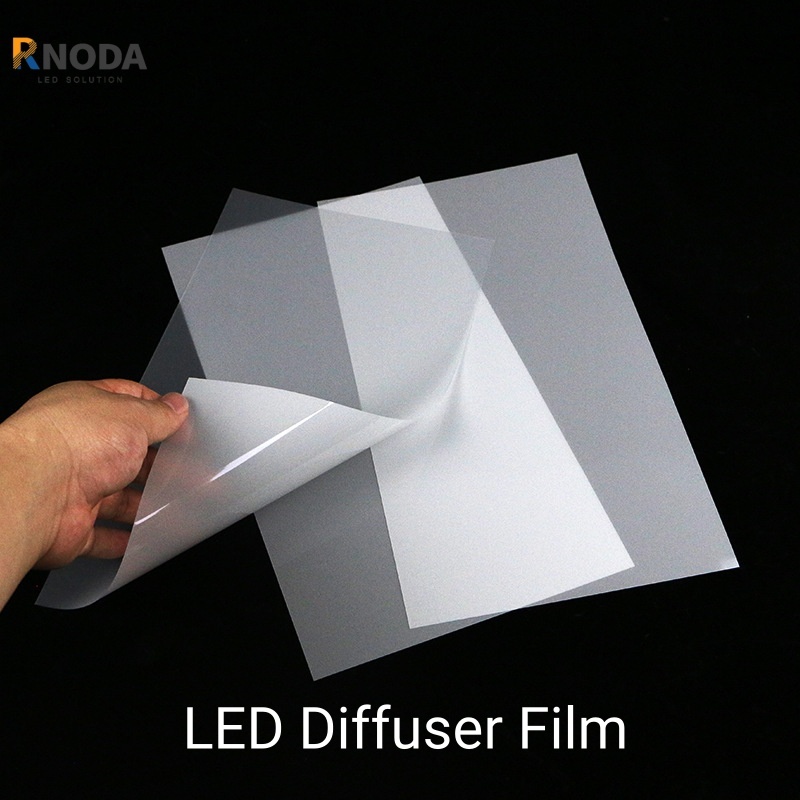

What is led diffuser film?

LED diffuser film primarily consists of a three-layer structure: a scratch-resistant layer + transparent PET base layer + diffusion layer. Light enters from the bottom scratch-resistant layer, then passes through the highly transparent PET base layer. It is then scattered by the diffusion particles dispersed within the diffusion coating, creating a uniform diffuse light source. Most diffusion particles are spherical in shape, functioning similarly to convex lenses. As light passes through these particles, it is focused within a specific exit angle, thereby enhancing the brightness of the emitted light. Additionally, particles of varying sizes within the diffusion layer ensure that light does not exit the diffusion film directly, thereby achieving a fogging effect.

Đặc điểm kỹ thuật

Tên sản phẩm	LED diffuser film for lighting fixture
Light transmittance rate	65-80%
Độ dày	0.125MM;0.188mm;0.21MM
Kích cỡ	Support Custom
Ứng dụng	Home, office, electronic products,backlight
Vật liệu	100% PET Virgin Material

Hiệu suất sản phẩm

1.Diffused light source with uniform illumination, softening the light source and transforming point light sources into diffuse light sources. Total light transmittance (T.t) is approximately 65–80%.

2.Features include anti-static properties, UV resistance, aging resistance, scratch resistance, excellent wear resistance, and strong weather resistance.

3 .Thickness: 0.1mm, 0.125MM, 0.15mm, 0.188mm, 0.21MM, 0.275MM

4.Application: led backlights, flat panel lights, automotive displays, ultra-thin light boxes, and other products, as well as household lighting products.

Product detail images

Workshop

Shipping method

Q1:Could you customize LED Diffuser Films according to our requirements? A1:Yes, customization are welcome. Please provide the size, material, thickness, and other specifications you need. For LED diffuser films with slot structures, we recommend providing CAD drawings to ensure accurate customization. Q2:What is LED Diffuser Film used for?
A2:LED Diffuser Films are widely used in backlight units of LED panels, lighting fixtures, advertising displays, and electronic devices to evenly diffuse light and eliminate hotspots. Q3：Do you accept sample for evaluation ? A3:Sure Q4: What's the MOQ for this item? A4:100pieces . Q5: Can you give me a discount price? A5: Depending on the volume. The larger the volume is, the more discount you can get. Q6. What payment methods do you accept? A6:For sample ,usually by PayPal ;we accept T/T (bank transfer) for bulk order .
