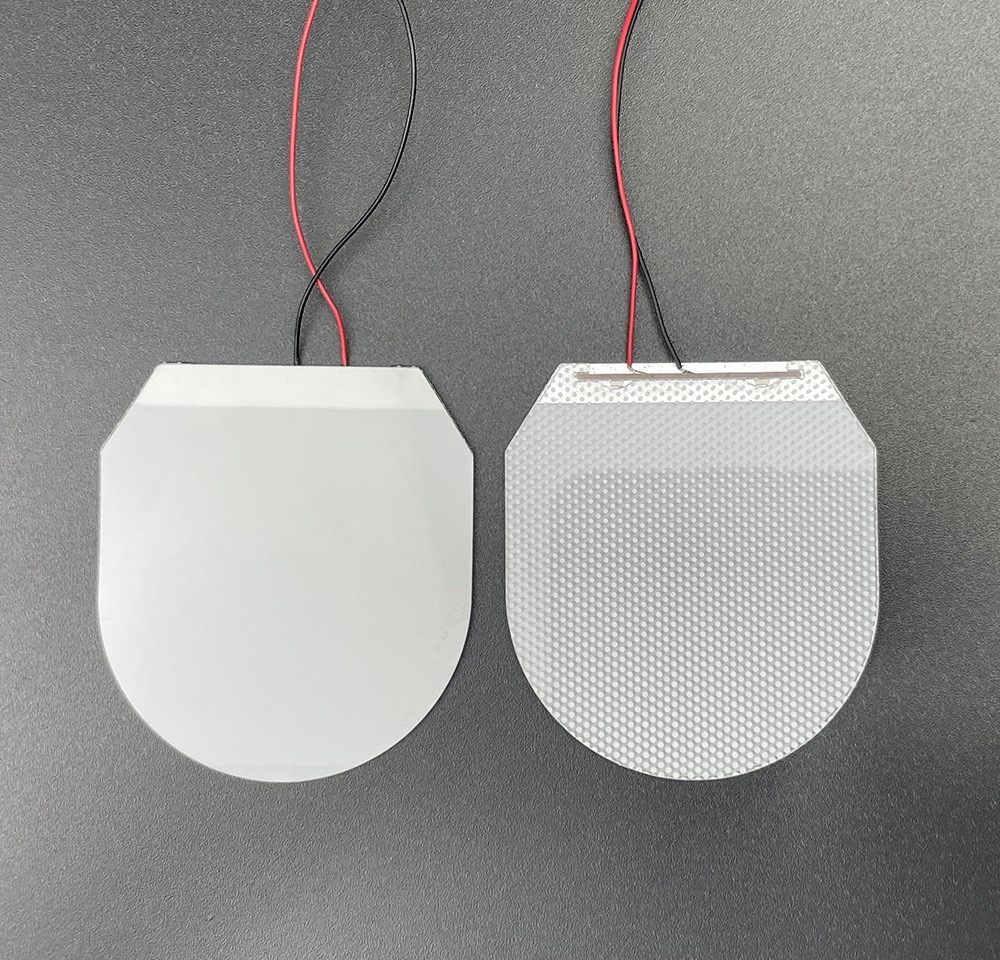

What is led backlit panel?
A led backlit panel is a source of illumination used in liquid crystal displays (LCDs), positioned behind or along the edges of the panel. Because LCDs cannot generate light on their own, they rely on this illumination to render a visible image.
Product Parameter
Customized Size and Shape Color Led Backlight for Lcd
| Size&shape | customized |
| Type of lamp beads | SMD lamp, Plug-in lamp ,Binding lamp |
| Lamp Colour | R,W,Y,YG,O,B,G,RB,RG,BG,RBG |
| backlight Thickness | (1.0mm/1.5mm/2.0mm/2.5mm/3.0mm/3.5mm/4.0mm/4.5mm/5.0mm) +0.23-3mm the thickness of diaphragm |
| connection | PCB self contained Pin, PCB out Pin ,Plug-in lamp-Pin , Chip lamp-terminal wire,Chip lamp Lead ,FPC |
| The wire connction pin specification | Length&quantity both can be customized according to demand |
| White LED Lights Voltage | 2.8V to 3.4V |
| Color LED Lights Voltage | 1.8V to 2.8V |
| Sample lead time | 6-7 working days |
| Bulk order Lead Time | it depends the exact quantity |

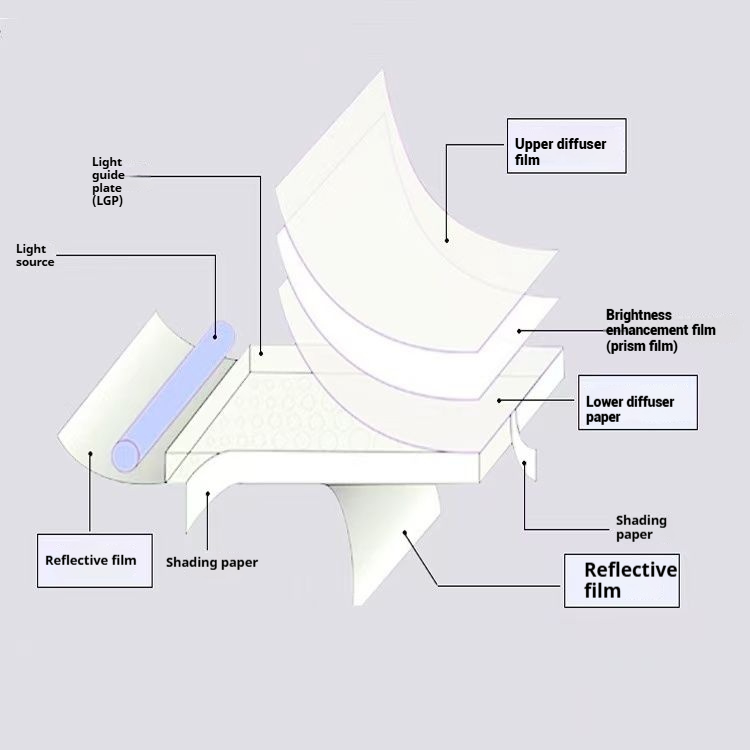

The LED backlight is mainly composed of a light guide plate, a diffusion plate, a reflective film, led lamp beads, and a light shielding paper. It features uniform light emission, high brightness, and a long service life.
LED backlit panel Structure

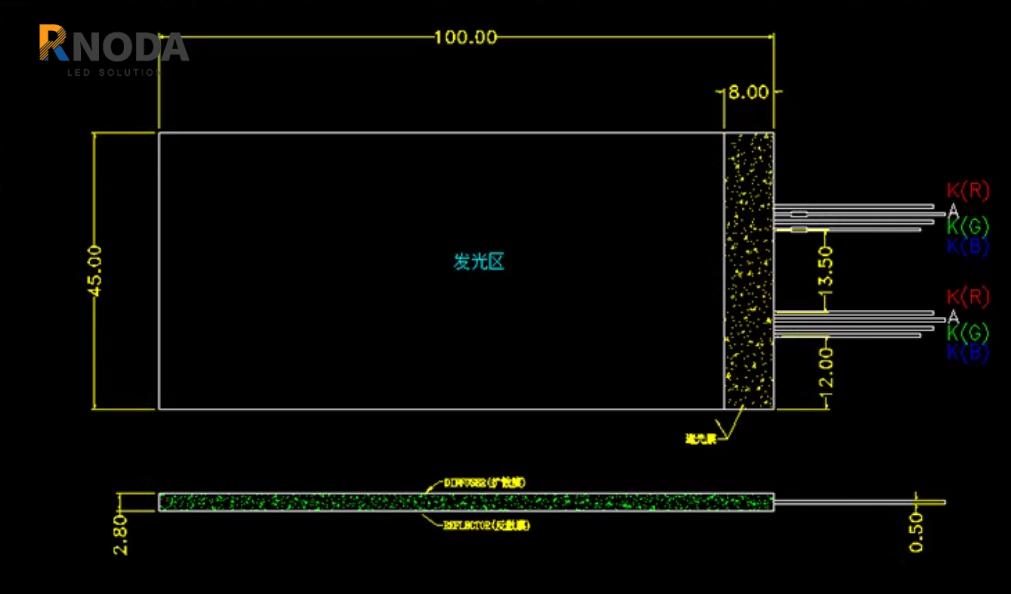

LED backlit panel CAD drawings
1. This led backlight does not emit light across the entire surface. It has a 5-10 mm wide light-blocking area and is a side-emitting backlight panel. The light entry direction can be customized.
2. Size, voltage, color, and connection method can be customized according to requirements.
LED Backlit Panel Application:
Various types of remote controls with LCD displays, instruments and meters, digital clocks, medical equipment, digital photo frames, sports equipment, household appliances, toys, gifts, digital electronic products, LCD display modules, LCM display modules, and all products requiring led backlighting in the LCD display category.

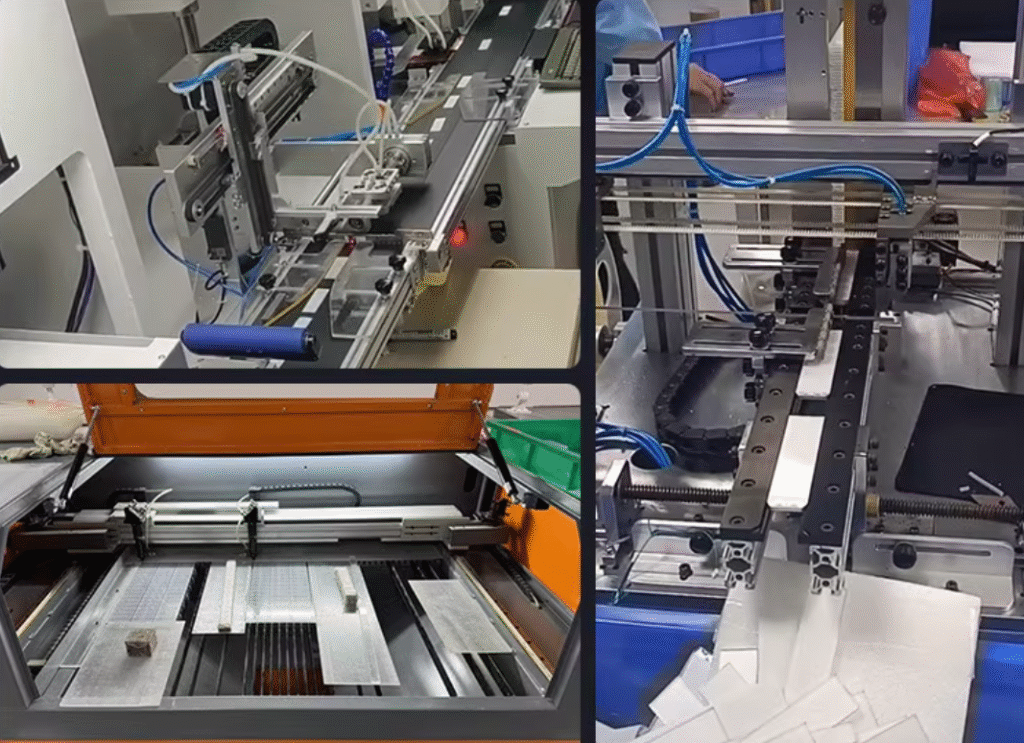

Workshop
FAQ
1.Q：Who are we?
A：Our company is located in Shenzhen, China , and is a high-tech enterprise that integrates research, development, production, and sales of led optical products .
Our products are best-selling in Europe, America, Central Asia,,and other parts of the world.
2.Q：How can we guarantee quality?
A：Always a pre-production sample before mass production; Always final Inspection before shipment.
3.Do you accept small order?
A:Whether it’s 1, 5 or 10 pieces,we do not refuse small orders. We hope you can fully know the quality of our products and our service attitude and our professional ability through the samples we send you. And then decided to keep working with us.Please do not hesitate to place a sample order with us firstly.
4.Q：What can you buy from us?
A：Customized led backlight;light guide plate;polarizer film ,reflector film;diffuser plate and other led related products .
